Components and functions of a mechanical bar screen

The "FL Mechanical Bar Screen" refers to a type of mechanical equipment used for the removal of solid debris and particles from wastewater or liquid streams in treatment processes. Mechanical bar screens are commonly employed in wastewater treatment plants, industrial facilities, and other locations where water or liquids need to be cleaned and purified.

Here's an overview of the components and functions of a mechanical bar screen:

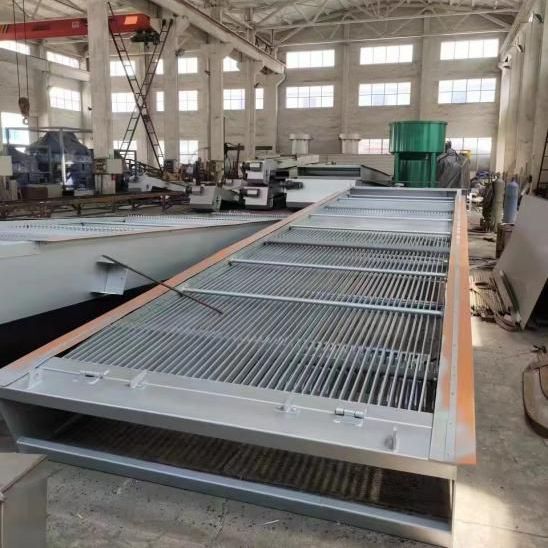

1. Mechanical Design: The mechanical bar screen consists of a series of vertical or inclined bars that are spaced apart to form a grid or barrier. The bars are usually made of durable materials such as stainless steel or other corrosion-resistant materials to withstand exposure to wastewater and prevent clogging.

2. Bar Rake System: The screen is equipped with a bar rake system that moves along the bars to capture and remove solid debris. The rake system typically includes teeth or blades that grab and lift the collected debris out of the water.

3. Drive Mechanism: The bar rake system is powered by a drive mechanism, which can be hydraulic, electric, or pneumatic. This mechanism propels the rake system along the length of the bars to clean the screen.

4. Debris Collection: As the bar rake system moves along the bars, it collects solid debris such as sticks, leaves, plastics, and other waste materials that are larger than the spacing between the bars.

5. Debris Disposal: The collected debris is typically lifted out of the water by the rake system and deposited into a collection bin or conveyor system for disposal.

Benefits of using a mechanical bar screen:

- Debris Removal: Mechanical bar screens effectively prevent larger debris from entering downstream processes, protecting pumps, valves, and other equipment from damage or clogging.

- Prevent Blockages: By removing solid materials early in the treatment process, mechanical bar screens help prevent blockages in pipes, channels, and treatment units.

- Maintain Water Quality: Removing debris helps maintain water quality standards by reducing the presence of contaminants and pollutants.

- Minimize Maintenance: Regular use of mechanical bar screens reduces the need for manual cleaning and maintenance of downstream equipment.

- Automated Operation: The automated nature of mechanical bar screens makes them reliable and efficient in continuously removing debris.

It's important to note that different models and sizes of mechanical bar screens are available to suit various flow rates and debris types. When selecting a mechanical bar screen, factors such as flow rate, particle size, and the type of debris in the wastewater stream should be considered to ensure optimal performance. Regular maintenance and cleaning of the mechanical bar screen are also essential to keep it functioning properly.
