Key features and characteristics of Square Body Ultra Rapid Fuses

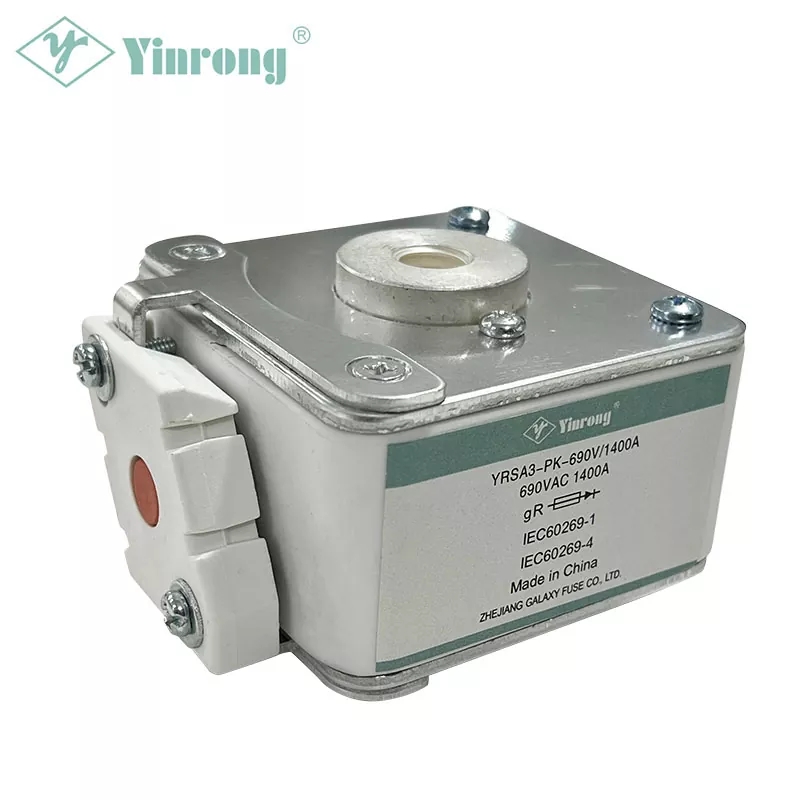

A Square Body Ultra Rapid Fuse, also known as a square body semiconductor protection fuse or square body ultra-fast-acting fuse, is a type of electrical fuse designed to protect sensitive electronic components and semiconductor devices from overcurrent and short-circuit faults. These fuses are primarily used in industrial and commercial applications where precise protection of semiconductor devices is crucial.

Here are some key features and characteristics of Square Body Ultra Rapid Fuses:

1. Square Body Design: These fuses have a distinctive square or cubical shape, which sets them apart from traditional cylindrical fuses. The square body design provides robust protection and ease of installation.

2. Ultra Rapid Response: Square Body Ultra Rapid Fuses are classified as ultra-fast-acting fuses. This means they can interrupt the flow of current very quickly when an overcurrent or short-circuit condition is detected. This rapid response is essential for protecting sensitive electronic components.

3. Semiconductor Protection: They are specifically designed to protect semiconductor devices like diodes, thyristors, IGBTs (Insulated Gate Bipolar Transistors), and other power electronics. These devices can be highly sensitive to overcurrents and require precise protection.

4. High Interrupting Capacity: Square Body Ultra Rapid Fuses have a high interrupting or breaking capacity, which means they can safely interrupt a fault current without causing damage to the fuse itself or the protected circuit.

5. Current Ratings: They are available in a wide range of current ratings to accommodate various semiconductor devices and application requirements. The appropriate fuse rating is selected based on the specific application and the device being protected.

6. Voltage Ratings: These fuses also come in different voltage ratings to match the voltage of the circuit they are installed in.

7. Mounting Options: Square Body Ultra Rapid Fuses can be mounted on specialized fuse holders or clips designed to accommodate their square shape.

8. Applications: They are commonly used in industrial motor drives, variable frequency drives (VFDs), power inverters, rectifiers, and other electronic and power control applications where semiconductor devices are employed.

9. Protection Coordination: These fuses are often part of a coordinated protection scheme within a larger electrical system to ensure that the semiconductor devices are adequately protected from overcurrents.

10. Testing and Standards: Square Body Ultra Rapid Fuses are typically tested and certified to meet international safety and performance standards, such as IEC 60269, UL 248-12, or similar standards.

Proper selection and installation of Square Body Ultra Rapid Fuses are essential to ensure the reliable and safe operation of semiconductor devices in various industrial and commercial applications. These fuses are designed to provide precision protection while minimizing the risk of damage to valuable electronic components.
